CS1301 - Media Coprocessor

National Semiconductor

📥 Download Datasheet

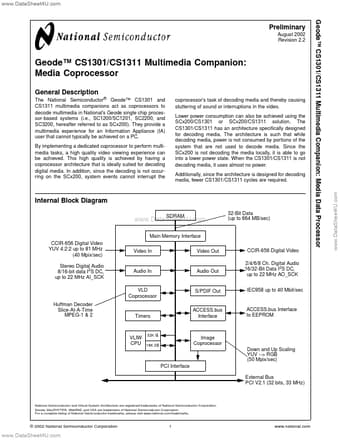

CS1301 Datasheet Preview — Preview of CS1301 PDF

Datasheet Details

Part number	CS1301
Manufacturer	National Semiconductor
File Size	455.04 KB
Description	Media Coprocessor
Datasheet	CS1301_NationalSemiconductor.pdf

CS1301 Product details

Description

The National Semiconductor® Geode™ CS1301 and CS1311 multimedia companions act as coprocessors to decode multimedia in National’s Geode single chip processor-based systems (i.e., SC1200/SC1201, SC2200, and SC3200, hereafter referred to as SCx200).

Features

alpha blending, GenLock mode, frame synchronization chroma key, programmable YUV color clipping s S/PDIF Out:.
16 MB: Two 4M x 16 or two 2M x 32.
32 MB: Four 2M x 32 or four 4M x 16 s Width 32-bit bus s Max. bandwidth 664 MB/sec (at 166 MHz).
Number of channels up to 6.
Sample size 16 or 24 bits per channel.
IEC-958, output up to 40 Mbits/sec s ACCESS. bus Interface: Image Coprocessor s Scaling programmable scale factor (0.2X to 10X) using 5-tap f.
