CS130 - CotoMOS

Features

u Contact Form: 1a u Load Voltage: 400V Maximum u Operation LED Current: 3.0mA Maximum u Load Current: 120mA Maximum u On-Resistance: 30Ω Maximum u Low Off-State Leakage Current: 1.0μA Maximum u I/O Breakdown Voltage: 1500Vrms Minimum u Suffix - H for I/O Breakdown Voltage: 5000Vrms Minimum.

Coto

Datasheet Details

Part number	CS130
Manufacturer	Coto
File Size	428.93 KB
Description	CotoMOS
Datasheet	CS130 Datasheet

📁 Similar Datasheet

CS13001 - TO-92 Plastic-Encapsulate Transistors (CAN SHENG)
CS13003 - NPN Transistor (CS)
CS1301 - Media Coprocessor (National Semiconductor)
CS1301-7R - 100 Watt DC-DC Converters (Power-One)
CS130N03A3 - Silicon N-Channel Power MOSFET (CR Micro)
CS130N03A4 - Silicon N-Channel Power MOSFET (CR Micro)
CS130N10A0 - Silicon N-Channel Power MOSFET (CR Micro)
CS130N10A8 - Silicon N-Channel Power MOSFET (Huajing Microelectronics)
CS13-E2GA332MYNS - Disk Ceramic Capacitors (TDK)
CS1311 - Media Coprocessor (National Semiconductor)

Other Datasheets by Coto

CS131 - CotoMOS
CS134 - CotoMOS
CS135 - CotoMOS
CS136 - CotoMOS
CS137 - CotoMOS
CS138 - CotoMOS
CS126 - CotoMOS
CS128 - Solid State Relay

Full PDF Text Transcription

Click to expand full text

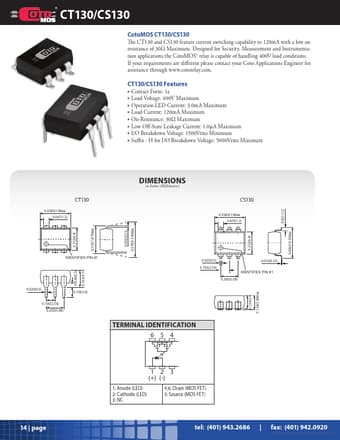

® CT130/CS130 CotoMOS CT130/CS130 The CT130 and CS130 feature current switching capability to 120mA with a low on resistance of 30Ω Maximum. Designed for Security, Measurement and Instrumentation applications the CotoMOS® relay is capable of handling 400V load conditions. If your requirements are different please contact your Coto Applications Engineer for assistance through www.cotorelay.com. CT130/CS130 Features u Contact Form: 1a u Load Voltage: 400V Maximum u Operation LED Current: 3.0mA Maximum u Load Current: 120mA Maximum u On-Resistance: 30Ω Maximum u Low Off-State Leakage Current: 1.0μA Maximum u I/O Breakdown Voltage: 1500Vrms Minimum u Suffix - H for I/O Breakdown Voltage: 5000Vrms Minimum DIMENSIONS in Inches (Millimeters) CT130 0.358(9.1)Max. 0.047(1.2) 0.310(7.87)Max. 0.
