CGS3314 - CMOS Crystal Clock Generators

Product Overview

National Semiconductor

Datasheet Details

Part number	CGS3314
Manufacturer	National Semiconductor
File Size	214.35 KB
Description	CMOS Crystal Clock Generators
Datasheet	CGS3314 Datasheet
Note	This datasheet PDF includes multiple part numbers: CGS3314, CGS3311. Please refer to the document for exact specifications by model.

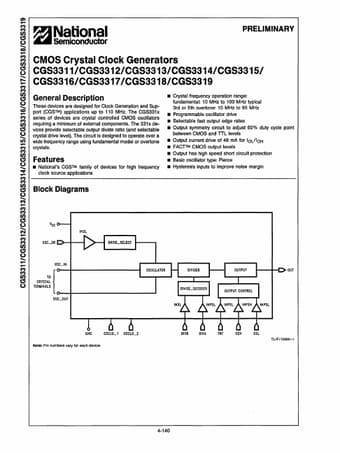

Additional preview pages of the CGS3314 datasheet.

Product details

Description

These devices are designed for Clock Generation and Sup- CD port (CGSTM) applications up to 110 MHz.The CGS331 x C") series of devices are crystal controlled CMOS oscillators enC") requiring a minimum of external components.The 331 x de- oC!J vices provide selectable output divide ratio (and selectable crystal drive level).The circuit is designed to operate over a LI) wide frequency range using fundamental model or overtone C") crystals. Crystal frequency operation range: fund

Features

National's CGSTM family of devices for high frequency.
Output has high speed short circuit protection.
Basic oscillator type: Pierce.
Hysteresis inputs to improve noise margin . ~ clock source.
