CD4049UBC - Hex Inverting/Non-Inverting Buffer

National Semiconductor

📥 Download Datasheet

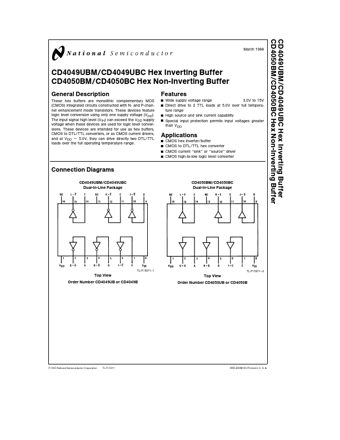

CD4049UBC Datasheet Preview — Preview of CD4049UBC PDF

Datasheet Details

Part number	CD4049UBC
Manufacturer	National Semiconductor
File Size	129.60 KB
Description	Hex Inverting/Non-Inverting Buffer
Datasheet	CD4049UBC_NationalSemiconductor.pdf

CD4049UBC Product details

Description

These hex buffers are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement mode transistors These devices feature logic level conversion using only one supply voltage (VDD) The input signal high level (VIH) can exceed the VDD supply voltage when these devices are used for logic level conversions These devices are intended for use as hex buffers CMOS to DTL TTL converters or as CMOS current drivers and at VDD e 5 0V they can drive directly two DTL

Features

Y Y Y Y Wide supply voltage range 3 0V to 15V Direct drive to 2 TTL loads at 5 0V over full temperature range High source and sink current capability Special input protection permits input voltages greater than VDD.
