ADC12048 - 12-Bit Plus Sign 216 kHz 8-Channel Sampling Analog-to-Digital Converter

National Semiconductor

📥 Download Datasheet

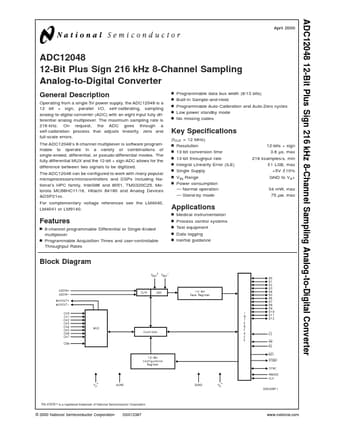

ADC12048 Datasheet Preview — Preview of ADC12048 PDF

Datasheet Details

Part number	ADC12048
Manufacturer	National Semiconductor
File Size	635.65 KB
Description	12-Bit Plus Sign 216 kHz 8-Channel Sampling Analog-to-Digital Converter
Datasheet	ADC12048_NationalSemiconductor.pdf

ADC12048 Product details

Description

Operating from a single 5V power supply, the ADC12048 is a 12 bit + sign, parallel I/O, self-calibrating, sampling analog-to-digital converter (ADC) with an eight input fully differential analog multiplexer.

Features

n 8-channel programmable Differential or Single-Ended multiplexer n Programmable Acquisition Times and user-controllable Throughput Rates Block Diagram DS012387-1 TRI-STATE ® is a registered trademark of National Semiconductor Corporation. © 2000 National Semiconductor Corporation DS012387 www. national. com ADC12048 Connection Diagrams PLCC Package PQFP Package DS012387-2 DS012387-3 Order Number ADC12048CIV See NS Package Number V44A Order Number ADC12048CIVF See NS Package Number VGZ.
