ADC12010 - 12-Bit/ 10 MSPS/ 160 mW A/D Converter

Name: ADC12010
SKU: ADC12010-166337

National Semiconductor

📥 Download Datasheet

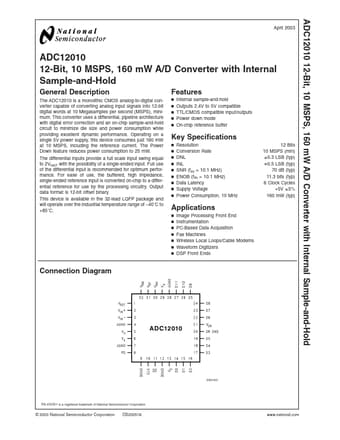

ADC12010 Datasheet Preview — Preview of ADC12010 PDF

Datasheet Details

Part number	ADC12010
Manufacturer	National Semiconductor
File Size	606.56 KB
Description	12-Bit/ 10 MSPS/ 160 mW A/D Converter
Datasheet	ADC12010_NationalSemiconductor.pdf

ADC12010 Product details

Description

The ADC12010 is a monolithic CMOS analog-to-digital converter capable of converting analog input signals into 12-bit digital words at 10 Megasamples per second (MSPS), minimum.

Features

n n n n n Internal sample-and-hold Outputs 2.4V to 5V compatible TTL/CMOS compatible input/outputs Power down mode On-chip reference buffer Key Specifications n n n n n n n n n Resolution Conversion Rate DNL INL SNR (fIN = 10.1 MHz) ENOB (fIN = 10.1 MHz) Data Latency Supply Voltage Power Consumption, 10 MHz 12 Bits 10 MSPS (min) ± 0.3 LSB (typ) ± 0.5 LSB (typ) 70 dB (typ) 11.3 bits (typ) 6 Clock Cycles +5V ± 5% 160 mW (typ).
