2N5432 - N-Channel JFETs

📥 Download Datasheet

Preview of 2N5432 PDF

2N5432 Product details

Description

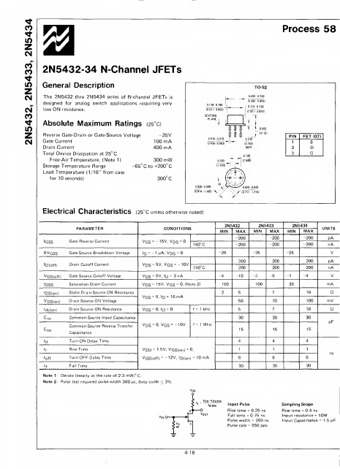

The 2N5432 thru 2N5434 series of N-channel JFETs is designed for analog switch applications requiring very ON low resistance.Absolute Maximum Ratings (25°o Reverse Gate-Drain or Gate- Source Voltage Gate Current Drain Current -25V 100 mA 400 mA Total Device Dissipation at 25°C Free-Air Temperature, (Note 1) 300 mW Storage Temperature Range -65°Cto+200°C Lead Temperature (1/16" from case for 10 seconds) 300° C " ""' „ i 0.2D9-G.230 (5J09 5.842) 0.115-0.150 0.016-0.019 " (0406^07
