CE7660 - Charge Pump DC-DC Voltage Converter

The CE7660 by Nanjing Chipower Electronics is a Charge Pump DC-DC Voltage Converter. Below is the official datasheet preview.

📥 Download Datasheet

CE7660 Charge Pump DC-DC Voltage Converter by Nanjing Chipower Electronics - Datasheet Preview — Official preview page of the **CE7660** Charge Pump DC-DC Voltage Converter datasheet (Nanjing Chipower Electronics).

Datasheet Details

Part number	CE7660
Manufacturer	Nanjing Chipower Electronics
File Size	202.45 KB
Description	Charge Pump DC-DC Voltage Converter
Datasheet	CE7660-NanjingChipowerElectronics.pdf
Additional preview pages of the CE7660 datasheet.

CE7660 Product details

Description

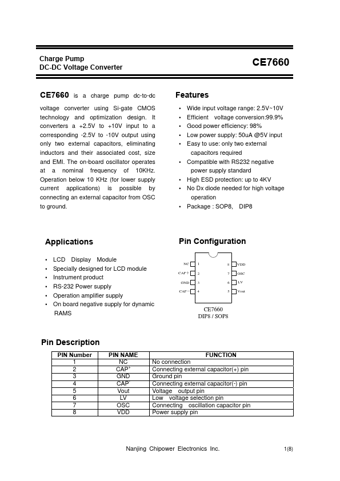

PIN Number 1 2 3 4 5 6 7 8 PIN NAME NC CAP+ GND CAP- Vout LV OSC VDD FUNCTION No connection Connecting external capacitor(+) pin Ground pin Connecting external capacitor(-) pin Voltage output pin Low voltage selection pin Connecting oscillation capacitor pin Power supply pin Nanjing Chipower Electronics Inc.1(8) Charge Pump DC-DC Voltage Converter Block Diagram CE7660 Absolute Maximum Ratings PARAMETER Input voltage LV PIN input voltage OSC PIN input voltage Output Short Duration (V

Features

Wide input voltage range: 2.5V~10V.
Efficient voltage conversion:99.9%.
Good power efficiency: 98%.
Low power supply: 50uA @5V input.
Easy to use: only two external capacitors required.
Compatible with RS232 negative power supply standard.
High ESD protection: up to 4KV.
No Dx diode needed for high voltage operation.
Package : SOP8, DIP8.
