CE71 - Embedded Array

Description

Fujitsu’s CE71 is a series of high-performance, 0.18µm Leff CMOS embedded arrays that include full support of diffused high-speed RAMs, ROMs, mixed-signal macros, and a variety of other embedded functions.

Features

  • 0.18µm Leff (0.24µm drawn) Propagation delay of 61 ps Separate core and I/O supply voltages Mixed-signal macros.
  • A/D and D/A converters I/Os: 2.5V, 3.3V, 5V tolerant Core power supply voltage: 2.5V, 1.8V, 1.5V Junction temperature: -40ºC~125ºC High performance and special I/Os.
  • PCML, LVDS, PCI, SSTL, GTL+, AGP, USB.
  • Analog and digital PLLs.
  • Packaging options: QFP, HQFP, BGA, TBGA.

📥 Download Datasheet

📁 Similar Datasheet

  • CE720802 - Three-Phase SCR/Diode Bridge Modules 20 Amperes/800 Volts (Powerex Power Semiconductors)
  • CE7400A-LZ-125.000-T - CLOCK (Raltron)
  • CE7450A - LEADED OSCILLATOR (Raltron Electronics)
  • CE7660 - Charge Pump DC-DC Voltage Converter (Nanjing Chipower Electronics)
Other Datasheets by Fujitsu Media Devices

    Full PDF Text Transcription

    Click to expand full text

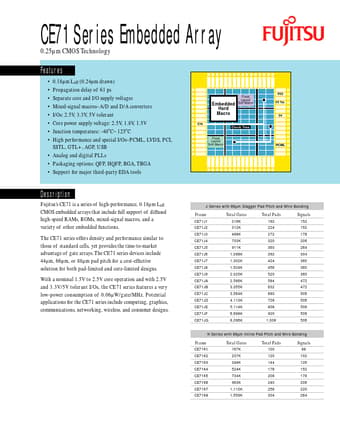

    www.DataSheet4U.com CE71 Series Embedded Array 0.25µm CMOS Technology Features • • • • • • • • 0.18µm Leff (0.24µm drawn) Propagation delay of 61 ps Separate core and I/O supply voltages Mixed-signal macros–A/D and D/A converters I/Os: 2.5V, 3.3V, 5V tolerant Core power supply voltage: 2.5V, 1.8V, 1.5V Junction temperature: -40ºC~125ºC High performance and special I/Os–PCML, LVDS, PCI, SSTL, GTL+, AGP, USB • Analog and digital PLLs • Packaging options: QFP, HQFP, BGA, TBGA • Support for major third-party EDA tools PCI Fixed Layout Soft Macro t Embedded Hard Macro Clk 5V Tol. 3V Clock Tree Fixed Layout Soft Macro PCML Description Fujitsu’s CE71 is a series of high-performance, 0.
