AXK6FxxxxxJ, AXK5F60545J - Narrow Pitch Connectors

Nais

📥 Download Datasheet

AXK6FxxxxxJ Datasheet Preview — This datasheet PDF includes multiple part numbers: AXK6FxxxxxJ, AXK5F60545J. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	AXK6FxxxxxJ, AXK5F60545J
Manufacturer	Nais
File Size	201.81 KB
Description	Narrow Pitch Connectors
Datasheet	AXK5F60545J_Nais.pdf
Note	This datasheet PDF includes multiple part numbers: AXK6FxxxxxJ, AXK5F60545J. Please refer to the document for exact specifications by model.

AXK6FxxxxxJ Product details

Features

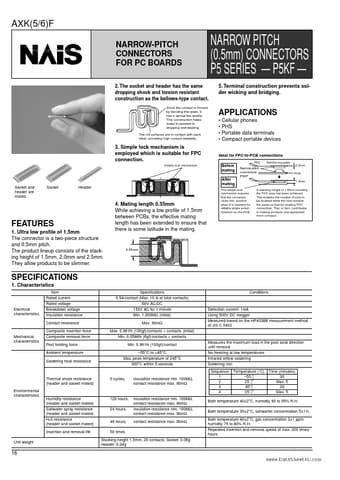

1. Ultra low proﬁle of 1.5mm The connector is a two-piece structure and 0.5mm pitch. The product lineup consists of the stacking height of 1.5mm, 2.0mm and 2.5mm. They allow products to be slimmer. 4. Mating length 0.55mm While achieving a low proﬁle of 1.5mm between PCBs, the effective mating length has been extended to ensure that there is some latitude in the mating. The simple lock mechanism ensures that the connector clicks into position when it is inserted for reliable single-action inse.
