AQZ105D, AQZ102D - (AQZxxxD) POWER PhotoMOS RELAYS

Nais

The AQZ105D by Nais is a (AQZxxxD) POWER PhotoMOS RELAYS. Below is the official datasheet preview.

📥 Download Datasheet

AQZ105D (AQZxxxD) POWER PhotoMOS RELAYS by Nais - Datasheet Preview — Official preview page of the AQZ105D (AQZxxxD) POWER PhotoMOS RELAYS datasheet (Nais).

Datasheet Details

Part number	AQZ105D, AQZ102D
Manufacturer	Nais
File Size	120.19 KB
Description	(AQZxxxD) POWER PhotoMOS RELAYS
Datasheet	AQZ102D_Nais.pdf
Note	This datasheet PDF includes multiple part numbers: AQZ105D, AQZ102D. Please refer to the document for exact specifications by model.

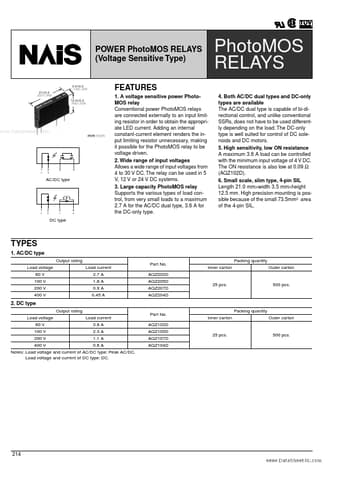

Additional preview pages of the AQZ105D datasheet.

AQZ105D Product details

Features

1. A voltage sensitive power PhotoMOS relay Conventional power PhotoMOS relays are connected externally to an input limiting resistor in order to obtain the appropriate LED current. Adding an internal constant-current element renders the input limiting resistor unnecessary, making it possible for the PhotoMOS relay to be voltage driven. 2. Wide range of input voltages Allows a wide range of input voltages from 4 to 30 V DC. The relay can be used in 5 V, 12 V or 24 V DC systems. 3. Large capacity.
