AQZ104D, AQZ102D - PhotoMOS RELAY

Name: AQZ104D
SKU: AQZ104D-1231190

Panasonic

The AQZ104D by Panasonic is a PhotoMOS RELAY. Below is the official datasheet preview.

Datasheet Details

Part number	AQZ104D, AQZ102D
Manufacturer	Panasonic
File Size	203.94 KB
Description	PhotoMOS RELAY
Datasheet	AQZ102D-Panasonic.pdf
Note	This datasheet PDF includes multiple part numbers: AQZ104D, AQZ102D. Please refer to the document for exact specifications by model.

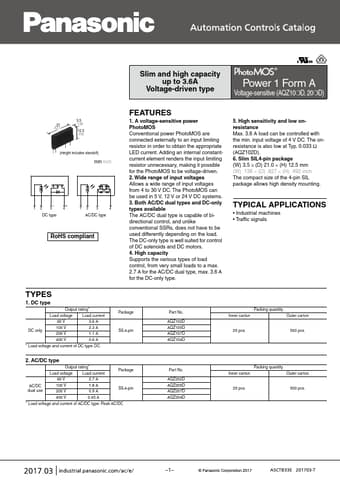

Additional preview pages of the AQZ104D datasheet.

1. A voltage-sensitive power PhotoMOS Conventional power PhotoMOS are connected externally to an input limiting resistor in order to obtain the appropriate LED current. Adding an internal constantcurrent element renders the input limiting resistor unnecessary, making it possible for the PhotoMOS to be voltage-driven. 2. Wide range of input voltages Allows a wide range of input voltages from 4 to 30 V DC. The PhotoMOS can be used in 5 V, 12 V or 24 V DC systems. 3. Both AC/DC dual types and DC-on.
