AQZ102D - (AQZxxxD) POWER PhotoMOS RELAYS

Nais

The AQZ102D by Nais is a (AQZxxxD) POWER PhotoMOS RELAYS. Below is the official datasheet preview.

📥 Download Datasheet

AQZ102D (AQZxxxD) POWER PhotoMOS RELAYS by Nais - Datasheet Preview — Official preview page of the AQZ102D (AQZxxxD) POWER PhotoMOS RELAYS datasheet (Nais).

Datasheet Details

Part number	AQZ102D
Manufacturer	Nais
File Size	120.19 KB
Description	(AQZxxxD) POWER PhotoMOS RELAYS
Datasheet	AQZ102D_Nais.pdf

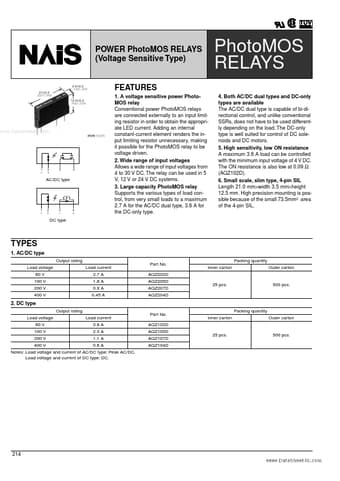

Additional preview pages of the AQZ102D datasheet.

AQZ102D Product details

Features

1. A voltage sensitive power PhotoMOS relay Conventional power PhotoMOS relays are connected externally to an input limiting resistor in order to obtain the appropriate LED current. Adding an internal constant-current element renders the input limiting resistor unnecessary, making it possible for the PhotoMOS relay to be voltage driven. 2. Wide range of input voltages Allows a wide range of input voltages from 4 to 30 V DC. The relay can be used in 5 V, 12 V or 24 V DC systems. 3. Large capacity.
