NP3502 - Press Fit Auto Rectifier

Naina Semiconductor

📥 Download Datasheet

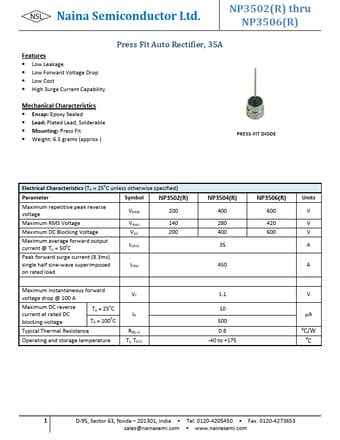

NP3502 Datasheet Preview — Preview of NP3502 PDF

datasheet Preview Page 2

Datasheet Details

Part number	NP3502
Manufacturer	Naina Semiconductor
File Size	166.29 KB
Description	Press Fit Auto Rectifier
Datasheet	NP3502_NainaSemiconductor.pdf

NP3502 Product details

Features

Low Leakage Low Forward Voltage Drop Low Cost High Surge Current Capability NP3502(R) thru NP3506(R) Mechanical Characteristics.
Encap: Epoxy Sealed Lead: Plated Lead, Solderable Mounting: Press Fit Weight: 6.5 grams (approx. ) PRESS-FIT DIODE Electrical Characteristics (TA = 250C unless otherwise specified) Parameter Maximum repetitive peak reverse voltage Maximum RMS Voltage Maximum DC Blocking Voltage Maximum av.
