Z0107MN - 4Q Triac

Name: Z0107MN
SKU: Z0107MN-285487

NXP

📥 Download Datasheet

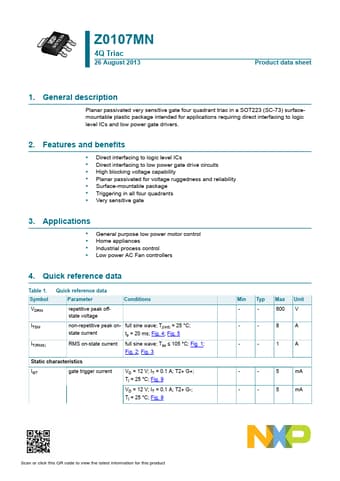

Z0107MN Datasheet Preview — Preview of Z0107MN PDF

Datasheet Details

Part number	Z0107MN
Manufacturer	NXP
File Size	253.89 KB
Description	4Q Triac
Datasheet	Z0107MN_PhilipsSemiconductors.pdf

Z0107MN Product details

Description

Planar passivated very sensitive gate four quadrant triac in a SOT223 (SC-73) surfacemountable plastic package intended for applications requiring direct interfacing to logic level ICs and low power gate drivers.

Features

Direct interfacing to logic level ICs.
Direct interfacing to low power gate drive circuits.
High blocking voltage capability.
Planar passivated for voltage ruggedness and reliability.
Surface-mountable package.
Triggering in all four quadrants.
Very sensitive gate 3.
