Z0107NN0 - 4Q Triac

Description

Planar passivated very sensitive gate four quadrant triac in a SOT223 (SC-73) surfacemountable plastic package intended for applications requiring enhanced immunity to noise and direct interfacing to logic level ICs and low power gate drivers.

2.

Features

  • Direct interfacing to logic level ICs.
  • Enhanced current surge capability.
  • Enhanced noise immunity.
  • High blocking voltage capability.
  • Planar passivated for voltage ruggedness and reliability.
  • Surface-mountable package.
  • Triggering in all four quadrants.
  • Very sensitive gate 3.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
Z0107NN Standard 1A Triacs STMicroelectronics
Z0107NA Standard 1A Triacs STMicroelectronics
Z0107NA 4Q Triac WeEn
Z0107NA0 4Q Triac WeEn
Z0107 1A Triacs SiPower

Other Datasheets by NXP Semiconductors

Part Number Description
Z0107NN 4Q Triac
Z0107NA Triacs
Z0107 Triacs
Z0107MA Triacs
Z0107MN 4Q Triac

Full PDF Text Transcription

Click to expand full text

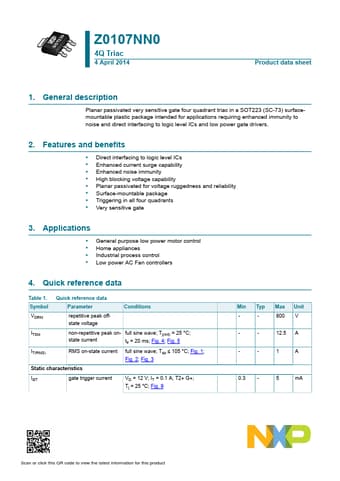

SOT223 Z0107NN0 4Q Triac 4 April 2014 Product data sheet 1. General description Planar passivated very sensitive gate four quadrant triac in a SOT223 (SC-73) surfacemountable plastic package intended for applications requiring enhanced immunity to noise and direct interfacing to logic level ICs and low power gate drivers. 2. Features and benefits • Direct interfacing to logic level ICs • Enhanced current surge capability • Enhanced noise immunity • High blocking voltage capability • Planar passivated for voltage ruggedness and reliability • Surface-mountable package • Triggering in all four quadrants • Very sensitive gate 3. Applications • General purpose low power motor control • Home appliances • Industrial process control • Low power AC Fan controllers 4.
