TJA1054 Fault-tolerant CAN transceiver

TJA1054 Description

TJA1054 Fault-tolerant CAN transceiver Rev.4 * 3 August 2010 Product data sheet 1.General .
The TJA1054 is the interface between the protocol controller and the physical bus wires in a Controller Area Network (CAN).

TJA1054 Applications

* up to 125 kBd in passenger cars. The device provides differential receive and transmit capability but will switch to single-wire transmitter and/or receiver in error conditions. The TJA1054T is pin and downwards compatible with the PCA82C252T and the TJA1053T. This means that these two devices can b

📥 Download Datasheet

Preview of TJA1054 PDF

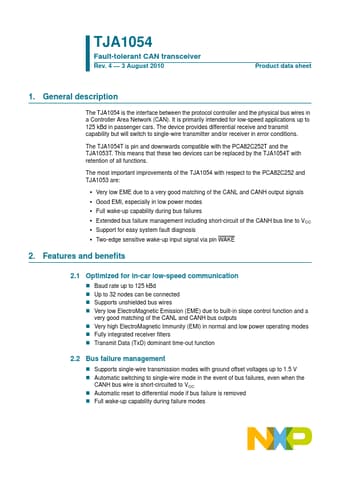

datasheet Preview Page 2 datasheet Preview Page 3
