TJA1051 High-speed CANtransceiver

TJA1051 Description

TJA1051 High-speed CAN transceiver Rev.7 * 15 January 2015 Product data sheet 1.General .
The TJA1051 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller and the physical tw.

TJA1051 Features

* 2.1 General
* Fully ISO 11898-2:2003 compliant
* Loop delay symmetry timing enables reliable communication at data rates up to 2 Mbit/s in the CAN FD fast phase
* Suitable for 12 V and 24 V systems
* Low ElectroMagnetic Emission (EME) and high ElectroMagnetic Immunity (EMI)
* VIO

TJA1051 Applications

* in the automotive industry, providing differential transmit and receive capability to (a microcontroller with) a CAN protocol controller. The TJA1051 belongs to the third generation of high-speed CAN transceivers from NXP Semiconductors, offering significant improvements over first- and second-gener

📥 Download Datasheet

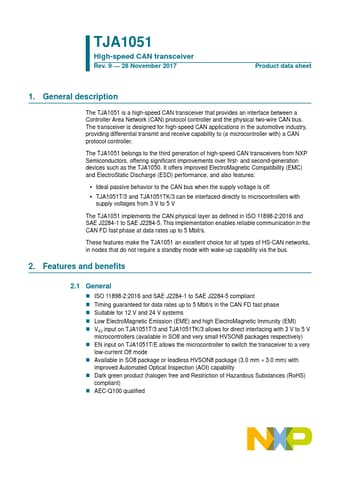

Preview of TJA1051 PDF
