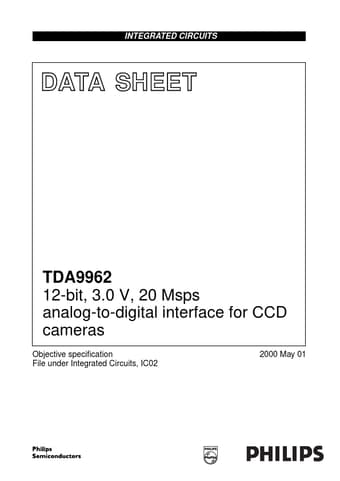

TDA9962 - 12-bit/ 3.0 V/ 20 Msps analog-to-digital interface for CCD cameras

Datasheet Details

Part number	TDA9962
Manufacturer	NXP
File Size	109.87 KB
Description	12-bit/ 3.0 V/ 20 Msps analog-to-digital interface for CCD cameras
Datasheet	TDA9962_PhilipsSemiconductors.pdf

plastic low proﬁle quad ﬂat package; 48 leads; body 7 × 7 × 1.4 mm APPLICATIONS TDA9962 Low-power, low-voltage CCD camera systems.

Correlated Double Sampling (CDS), Programmable Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter (ADC) and reference regulator included.
Fully programmable via a 3-wire serial interface.
Sampling frequency up to 20 MHz.
PGA gain range of 24 dB (in steps of 0.1 dB).
Low power consumption of only 140 mW at 2.7 V.
Power consumption in standby mode of 4.5 mW (typ. ).
3.0 V operation and 2.2 to 3.6 V operation for the digital outpu.
