TDA9965A - 40 Msps analog-to-digital interface for CCD cameras

NXP

The TDA9965A by NXP is a 40 Msps analog-to-digital interface for CCD cameras. Below is the official datasheet preview.

📥 Download Datasheet

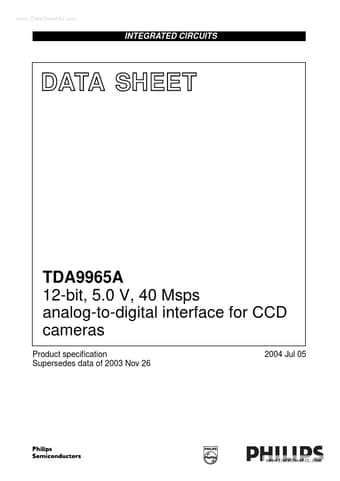

TDA9965A 40 Msps analog-to-digital interface for CCD cameras by NXP - Datasheet Preview — Official preview page of the **TDA9965A** 40 Msps analog-to-digital interface for CCD cameras datasheet (NXP).

Datasheet Details

Part number	TDA9965A
Manufacturer	NXP
File Size	182.38 KB
Description	40 Msps analog-to-digital interface for CCD cameras
Datasheet	TDA9965A_PhilipsSemiconductors.pdf
Additional preview pages of the TDA9965A datasheet.

TDA9965A Product details

Description

PARAMETER analog supply voltage digital supply voltage digital output supply voltage analog supply current digital supply current digital output supply current ADC resolution CTH input voltage (peak-to-peak value) CTH output ampliﬁer gain PGA dynamic range maximum pixel frequency total noise from CTH input to ADC output (RMS value) equivalent input noise (RMS value) total power consumption code fco(CTH) = 0000 GPGA = 0 dB; code fco(CTH) = 0000 GPGA = 30 dB; code fco(CTH) = 0000; note 1 with inte

Features

Clamp and Track/Hold (CTH) circuit with adjustable bandwidth, Programmable Gain Amplifier (PGA), 12-bit Analog-to-Digital Converter (ADC) and reference regulator.
Fully programmable via a 3-wire serial interface.
Sampling frequency up to 40 MHz.
PGA gain from 0 to 36 dB (in 0.05 dB steps).
CTH programmable bandwidth from 35 to 284 MHz typical.
Standby mode (20 mW typical).
Low power consumption of only 425 mW typical.
5 V o.
