TDA9952 - 25 Msps analog-to-digital interface for CCD cameras

NXP

📥 Download Datasheet

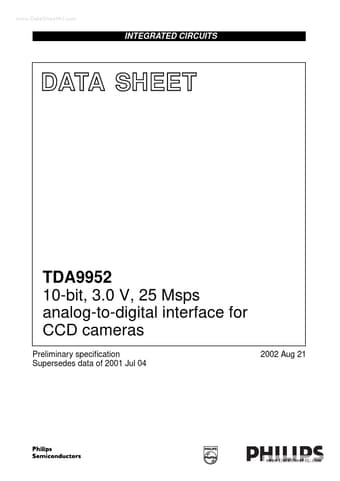

TDA9952 Datasheet Preview — Preview of TDA9952 PDF

Datasheet Details

Part number	TDA9952
Manufacturer	NXP
File Size	184.91 KB
Description	25 Msps analog-to-digital interface for CCD cameras
Datasheet	TDA9952_PhilipsSemiconductors.pdf

TDA9952 Product details

Description

plastic low proﬁle quad ﬂat package; 48 leads; body 7 × 7 × 1.4 mm plastic, heatsink very thin quad ﬂat package; no leads; 48 terminals; body 7 × 7 × 0.85 mm GENERAL DESCRIPTION TDA9952 The TDA9952 is a 10-bit analog-to-digital interface for CCD cameras.The device consists of a Correlated Double Sampling (CDS) circuit, a digitally Programmable Gain Amplifier (PGA), a black level clamp and a 10-bit Analog-to-Digital Converter (ADC).An internal CDS input buffer is incorporated in order to avoi

Features

Sample rate = 25 Msps;10-bit resolution.
Single 3.0 V supply operation (2.2 to 3.6 V operation for the digital outputs).
Low power consumption: only 115 mW at 2.7 V.
Power consumption in standby mode: 4.5 mW (typical value).
Programmable gain amplifier: gain range = 36 dB in 0.1 dB steps.
Correlated double sampling.
Internal input buffer for the correlated double sampling.
Fully programmable via a 3-wire serial interface.
