TDA7057AQ - 2 x 8 W stereo BTL audio amplifier

NXP

📥 Download Datasheet

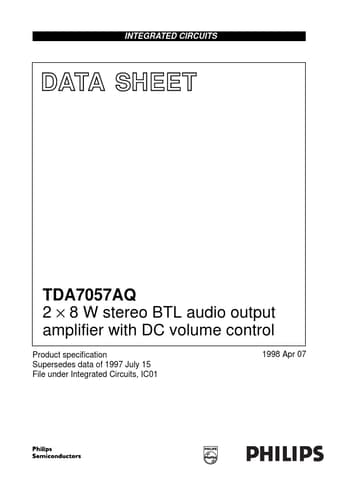

TDA7057AQ Datasheet Preview — Preview of TDA7057AQ PDF

Datasheet Details

Part number	TDA7057AQ
Manufacturer	NXP
File Size	116.37 KB
Description	2 x 8 W stereo BTL audio amplifier
Datasheet	TDA7057AQ_PhilipsSemiconductors.pdf

TDA7057AQ Product details

Description

TDA7057AQ The TDA7057AQ is a stereo BTL output amplifier with DC volume control.The device is designed for use in TVs and monitors, but is also suitable for battery-fed portable recorders and radios.Missing Current Limiter (MCL) A MCL protection circuit is built-in.The MCL circuit is activated when the difference in current between the output terminal of each amplifier exceeds 100 mA (typical 300 mA).This level of 100 mA allows for single-ended headphone applications.TYP. 3.5 5

Features

DC volume control.
Few external components.
Mute mode.
Thermal protection.
Short-circuit proof.
No switch-on and switch-off clicks.
Good overall stability.
Low power consumption.
Low HF radiation.
ESD protected on all pins. QUICK.
