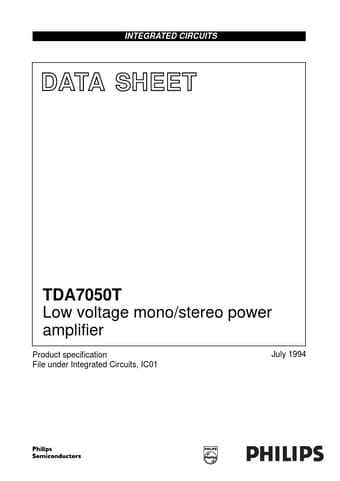

INTEGRATED CIRCUITS
DATA SHEET
TDA7050T Low voltage mono/stereo power amplifier
Product specification File under Integrated Circuits, IC01 July 1994
Philips Semiconductors
Product specification
Low voltage mono/stereo power amplifier
GENERAL DESCRIPTION
TDA7050T
The TDA7050T is a low voltage audio amplifier for small radios with headphones (such as watch, pen and pocket radios) in mono (bridge-tied load) or stereo applications. Features • Limited to battery supply application only (typ. 3 and 4 V) • Operates with supply voltage down to 1,6 V • No external components required • Very low quiescent current • Fixed integrated gain of 26 dB, floating differential input • Flexibility in use − mono BTL as well as stereo • Small dimension of encapsulation (see package design example).
