SAA7283 - Terrestrial Digital Sound Decoder TDSD3

Description

The SAA7283 is a NICAM receiver solution, developing the well established high quality Terrestrial Digital Sound decoder family from Philips Semiconductors.

Features

  • Single-chip solution including FM and vision filters, analog demodulator and audio switching.
  • Dual standard with automatic selection between PAL system I and BGH including French NICAM L system).
  • Single low-radiation crystal oscillator for improved EMC.
  • Stereo bitstream audio DACs.
  • Programmable attenuator for matching levels of NICAM and FM audio sources at the output of the device.
  • Full EBU NICAM 728 specification demodulation and decoding.

📥 Download Datasheet

📁 Similar Datasheet

  • SAA7280 - Terrestrial Digital Sound Decoder (Philips)
  • SAA7210 - Decoder (Signetics)
  • SAA7000 - Compact Disc Circuit (Signetics)
  • SAA7010 - Demodulator (Signetics)
  • SAA7020 - Error Corrector (Signetics)
  • SAA7030 - Filter Circuit for Compact Disc (Signetics)
  • SAA7117 - Multistandard video decoder (Philips)
  • SAA7117A - Multistandard video decoder (Philips)
  • SAA7173 - Analog TV Video and Stereo Decoder (Philips)
  • SAA7174 - Analog TV Video and Stereo Decoder (Philips)
Other Datasheets by NXP
  • SAA7282 - Terrestrial Digital Sound Decoder TDSD2
  • SAA7284 - Terrestrial digital sound decoder for conventional intercarrier PLL-IF systems
  • SAA7201 - Integrated MPEG2 AVG decoder
  • SAA7205H - MPEG-2 systems demultiplexer
  • SAA7206H - DVB compliant descrambler
  • SAA7207H - Reed Solomon decoder IC
  • SAA7210 - Decoder for compact disc digital audio system
  • SAA7212 - Integrated MPEG AVG decoder

Full PDF Text Transcription

Click to expand full text

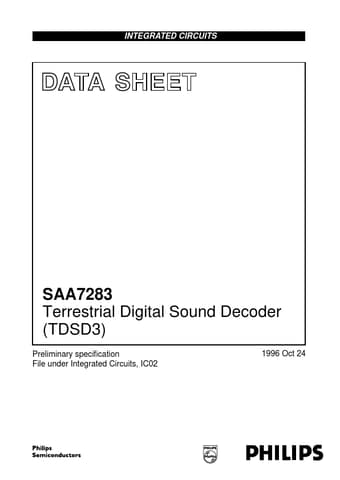

INTEGRATED CIRCUITS DATA SHEET SAA7283 Terrestrial Digital Sound Decoder (TDSD3) Preliminary specification File under Integrated Circuits, IC02 1996 Oct 24 Philips Semiconductors Preliminary specification Terrestrial Digital Sound Decoder (TDSD3) FEATURES • Single-chip solution including FM and vision filters, analog demodulator and audio switching • Dual standard with automatic selection between PAL system I and BGH including French NICAM L system) • Single low-radiation crystal oscillator for improved EMC • Stereo bitstream audio DACs • Programmable attenuator for matching levels of NICAM and FM audio sources at the output of the device • Full EBU NICAM 728 specification demodulation and decoding • Digital Audio Interface conforming with EBU/IEC 958 • Automatic mute function which swi
