PZU9.1BA, PZU2.4BA - Single Zener diodes

Name: PZU9.1BA
SKU: PZU9.1BA-1009675

NXP

The PZU9.1BA by NXP is a Single Zener diodes. Below is the official datasheet preview.

Datasheet Details

Part number	PZU9.1BA, PZU2.4BA
Manufacturer	NXP
File Size	116.65 KB
Description	Single Zener diodes
Datasheet	PZU2.4BA-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: PZU9.1BA, PZU2.4BA. Please refer to the document for exact specifications by model.

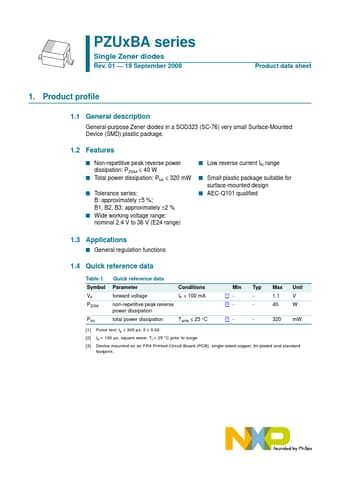

Additional preview pages of the PZU9.1BA datasheet.

General-purpose Zener diodes in a SOD323 (SC-76) very small Surface-Mounted Device (SMD) plastic package.

I Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W I Total power dissipation: Ptot ≤ 320 mW I Tolerance series: B: approximately ±5 %; B1, B2, B3: approximately ±2 % I Wide working voltage range: nominal 2.4 V to 36 V (E24 range) I Low reverse current IR range I Small plastic package suitable for surface-mounted design I AEC-Q101 qualiﬁed 1.3.
