PZU9.1B2L - Single Zener diodes

Download the PZU9.1B2L datasheet PDF (PZU2.4BL included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for single zener diodes.

Description

General-purpose Zener diodes in SOD882 leadless ultra small Surface-Mounted Device (SMD) plastic package.

Features

  • I Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W I Total power dissipation: Ptot ≤ 250 mW I Tolerance series: B: approximately ±5 %; B2: approximately ±2 % I Wide working voltage range: nominal 2.4 V to 36 V (E24 range) I Low reverse current IR range I Small plastic package suitable for surface-mounted design I AEC-Q101 qualified 1.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PZU2.4BL-NXP.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • PZU9.1B - Single Zener diodes (nexperia)
  • PZU9.1B-Q - Zener voltage regulator diodes (nexperia)
  • PZU9.1BA-Q - Single Zener diodes (nexperia)
  • PZU9.1 - Single Zener diodes (nexperia)
  • PZU10 - Single Zener diodes (nexperia)
  • PZU10B-Q - Zener voltage regulator diodes (nexperia)
  • PZU10BA-Q - Single Zener diodes (nexperia)
  • PZU11 - Single Zener diodes (nexperia)
  • PZU11B-Q - Zener voltage regulator diodes (nexperia)
  • PZU11BA-Q - Single Zener diodes (nexperia)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

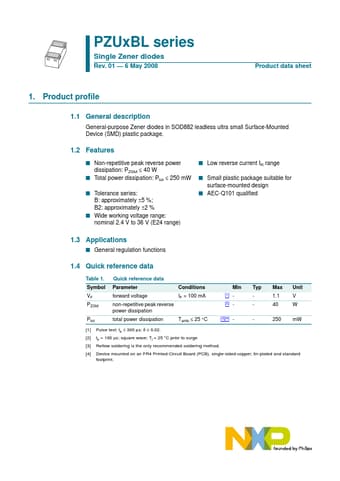

PZUxBL series Single Zener diodes Rev. 01 — 6 May 2008 Product data sheet 1. Product profile 1.1 General description General-purpose Zener diodes in SOD882 leadless ultra small Surface-Mounted Device (SMD) plastic package. 1.2 Features I Non-repetitive peak reverse power dissipation: PZSM ≤ 40 W I Total power dissipation: Ptot ≤ 250 mW I Tolerance series: B: approximately ±5 %; B2: approximately ±2 % I Wide working voltage range: nominal 2.4 V to 36 V (E24 range) I Low reverse current IR range I Small plastic package suitable for surface-mounted design I AEC-Q101 qualified 1.3 Applications I General regulation functions 1.4 Quick reference data Table 1.
