PUSB3FR6 - ESD protection

PUSB3FR6 Description

XSON7 PUSB3FR6 ESD protection for ultra high-speed interfaces Rev.1 * 25 February 2015 Product data sheet 1.Product profile 1.1 General.
The device is designed to protect high-speed interfaces such as SuperSpeed and Hi-Speed USB combination, SD-memory card 3.

PUSB3FR6 Features

* System-level ESD protection for USB 2.0 and USB 3.1 combination, SD-memory card and thunderbolt interfaces
* Supports SuperSpeed USB 3.1 at 10 Gbps
* All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of 15 kV exceeding IEC 61000-4-2, level 4

PUSB3FR6 Applications

* The device is designed for high-speed receiver and transmitter port protection:
* Portable and wearable devices
* Smartphones and tablet PCs
* TVs and monitors
* DVD recorders and players
* Notebooks, main board graphic cards and ports
* Set-top boxes and game consoles NXP S

📥 Download Datasheet

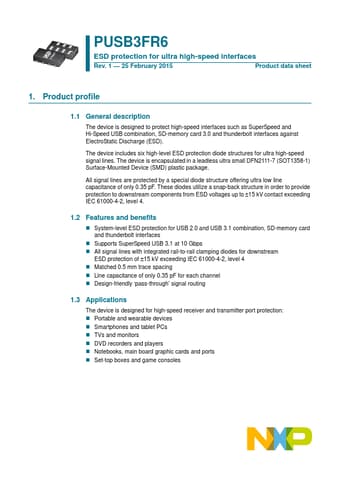

Preview of PUSB3FR6 PDF
