PUSB3FR4 - ESD protection

PUSB3FR4 Description

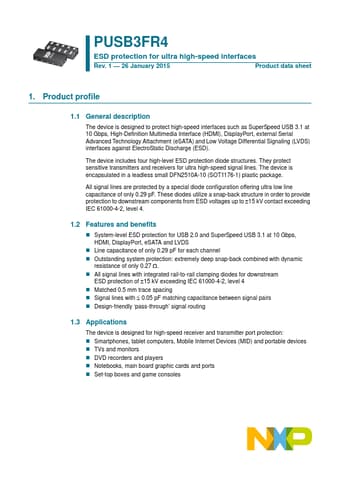

XSON10 PUSB3FR4 ESD protection for ultra high-speed interfaces Rev.1 * 26 January 2015 Product data sheet 1.Product profile 1.1 General.
The device is designed to protect high-speed interfaces such as SuperSpeed USB 3.

PUSB3FR4 Features

* System-level ESD protection for USB 2.0 and SuperSpeed USB 3.1 at 10 Gbps, HDMI, DisplayPort, eSATA and LVDS
* Line capacitance of only 0.29 pF for each channel
* Outstanding system protection: extremely deep snap-back combined with dynamic resistance of only 0.27 .
* All signal l

PUSB3FR4 Applications

* The device is designed for high-speed receiver and transmitter port protection:
* Smartphones, tablet computers, Mobile Internet Devices (MID) and portable devices
* TVs and monitors
* DVD recorders and players
* Notebooks, main board graphic cards and ports
* Set-top boxes and g
