NX5P2924C - Logic controlled high-side power switch

NXP

📥 Download Datasheet

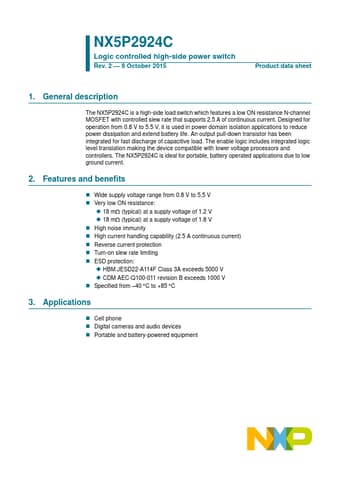

NX5P2924C Datasheet Preview — Preview of NX5P2924C PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	NX5P2924C
Manufacturer	NXP ↗
File Size	460.43 KB
Description	Logic controlled high-side power switch
Datasheet	NX5P2924C-NXP.pdf

NX5P2924C Product details

Description

The NX5P2924C is a high-side load switch which

Features

Wide supply voltage range from 0.8 V to 5.5 V.
Very low ON resistance:.
18 m (typical) at a supply voltage of 1.2 V.
18 m (typical) at a supply voltage of 1.8 V.
High noise immunity.
High current handling capability (2.5 A continuous current).
Reverse current protection.
Turn-on slew rate limiting.
ESD protection:.
HBM JESD22-A114F Class 3A exceeds 5000 V.
CDM AEC-Q100-011 revision B exceeds 1000 V.
Specified from 40 C to +85 C 3.
