NX3L1T53 - Low-ohmic Single-pole Double-throw Analog Switch

Description

The NX3L1T53 provides one low-ohmic single-pole double-throw analog switch, suitable for use as an analog or digital multiplexer/demultiplexer.

It has a digital select input (S), two independent inputs/outputs (Y0, Y1), a common input/output (Z) and an active LOW enable input (E).

Features

  • I Wide supply voltage range from 1.4 V to 4.3 V I Very low ON resistance (peak): N 1.6 Ω (typical) at VCC = 1.4 V N 1.0 Ω (typical) at VCC = 1.65 V N 0.55 Ω (typical) at VCC = 2.3 V N 0.50 Ω (typical) at VCC = 2.7 V N 0.50 Ω (typical) at VCC = 4.3 V I Break-before-make switching I High noise immunity I ESD protection: N HBM JESD22-A114E Class 3A exceeds 7500 V N MM JESD22-A115-A exceeds 200 V N CDM AEC-Q100-011 revision B exceeds 1000 V I CMOS low-power consumption I Latch-up performance exceeds.

📥 Download Datasheet

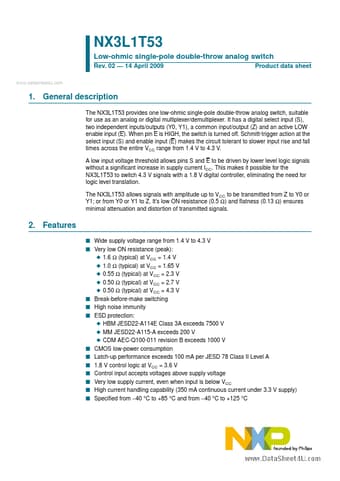

Datasheet preview – NX3L1T53

Datasheet Details

Part number NX3L1T53
Manufacturer NXP Semiconductors
File Size 206.04 KB
Description Low-ohmic Single-pole Double-throw Analog Switch
Datasheet download datasheet NX3L1T53 Datasheet
Additional preview pages of the NX3L1T53 datasheet.

📁 Similar Datasheet

  • NX3L1T5157 - Low-ohmic single-pole double-throw switch (NXP Semiconductors)
  • NX3L1T3157 - Low-ohmic single-pole double-throw analog switch (NXP Semiconductors)
  • NX3L1G3157 - Low-ohmic single-pole double-throw analog switch (NXP Semiconductors)
  • NX3L1G66 - Low-voltage analog switch (NXP Semiconductors)
  • NX3L2G384 - Dual low-ohmic single-pole single-throw analog switch (NXP Semiconductors)
  • NX3L2T66 - Dual low-ohmic single-pole single-throw analog switch (NXP Semiconductors)
  • NX3L4051 - Single low-ohmic 8-channel analog switch (NXP Semiconductors)
  • NX3008CBKS - N/P-channel MOSFET (nexperia)
  • NX3008CBKS - MOSFET (NXP Semiconductors)
  • NX3008CBKV - MOSFET (NXP Semiconductors)
Other Datasheets by NXP
  • NX3L1T384 - Single-pole Single-throw Analog Switch
  • NX3L1T66 - Low-ohmic Single-pole Single-throw Analog Switch
  • NX3L1G3157-Q100 - Low-ohmic single-pole double-throw analog switch
  • NX3L1G384 - Low-ohmic single-pole single-throw analog switch
  • NX3L1G53 - Low-ohmic Single-pole Double-throw Analog Switch
  • NX3L1G66-Q100 - Low-ohmic single-pole single-throw analog switch
  • NX3L2267 - Low-ohmic dual single-pole double-throw analog switch
  • NX3L2267S - Low-ohmic dual single-pole double-throw analog switch

Full PDF Text Transcription

Click to expand full text
NX3L1T53 Low-ohmic single-pole double-throw analog switch Rev. 02 — 14 April 2009 www.datasheet4u.com Product data sheet 1. General description The NX3L1T53 provides one low-ohmic single-pole double-throw analog switch, suitable for use as an analog or digital multiplexer/demultiplexer. It has a digital select input (S), two independent inputs/outputs (Y0, Y1), a common input/output (Z) and an active LOW enable input (E). When pin E is HIGH, the switch is turned off. Schmitt-trigger action at the select input (S) and enable input (E) makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 1.4 V to 4.3 V. A low input voltage threshold allows pins S and E to be driven by lower level logic signals without a significant increase in supply current ICC.
