NTS0308E - 8-bit dual supply translating transceiver

NXP

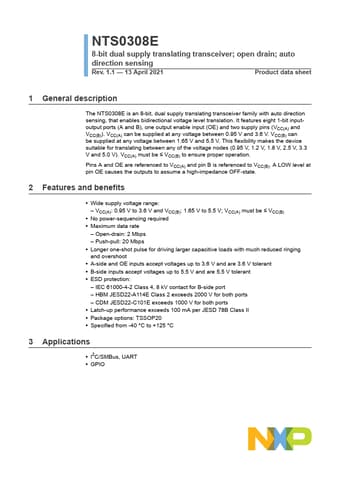

The NTS0308E by NXP is a 8-bit dual supply translating transceiver. Below is the official datasheet preview.

📥 Download Datasheet

NTS0308E 8-bit dual supply translating transceiver by NXP - Datasheet Preview — Official preview page of the **NTS0308E** 8-bit dual supply translating transceiver datasheet (NXP).

Datasheet Details

Part number	NTS0308E
Manufacturer	NXP
File Size	316.78 KB
Description	8-bit dual supply translating transceiver
Datasheet	NTS0308E-NXP.pdf
Additional preview pages of the NTS0308E datasheet.

NTS0308E Product details

Description

The NTS0308E is an 8-bit, dual supply translating transceiver family with auto direction sensing, that enables bidirectional voltage level translation.

Features

Wide supply voltage range:.
VCC(A): 0.95 V to 3.6 V and VCC(B): 1.65 V to 5.5 V; VCC(A) must be ≤ VCC(B).
No power-sequencing required.
Maximum data rate.
Open-drain: 2 Mbps.
Push-pull: 20 Mbps.
Longer one-shot pulse for driving larger capacitive loads with much reduced ringing and overshoot.
A-side and OE inputs accept voltages up to 3.6 V and are 3.6 V tolerant.
B-side inputs accept voltages up to 5.5 V and are 5.
