NTS0304E - 4-bit dual supply translating transceiver

NXP

The NTS0304E by NXP is a 4-bit dual supply translating transceiver. Below is the official datasheet preview.

📥 Download Datasheet

NTS0304E 4-bit dual supply translating transceiver by NXP - Datasheet Preview — Official preview page of the **NTS0304E** 4-bit dual supply translating transceiver datasheet (NXP).

Datasheet Details

Part number	NTS0304E
Manufacturer	NXP
File Size	459.30 KB
Description	4-bit dual supply translating transceiver
Datasheet	NTS0304E-NXP.pdf

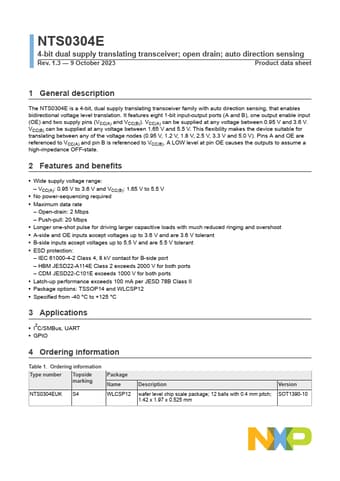

Additional preview pages of the NTS0304E datasheet.

NTS0304E Product details

Description

The NTS0304E is a 4-bit, dual supply translating transceiver family with auto direction sensing, that enables bidirectional voltage level translation.

Features

Wide supply voltage range:.
VCC(A): 0.95 V to 3.6 V and VCC(B): 1.65 V to 5.5 V.
No power-sequencing required.
Maximum data rate.
Open-drain: 2 Mbps.
Push-pull: 20 Mbps.
Longer one-shot pulse for driving larger capacitive loads with much reduced ringing and overshoot.
A-side and OE inputs accept voltages up to 3.6 V and are 3.6 V tolerant.
B-side inputs accept voltages up to 5.5 V and are 5.5 V tolerant.
