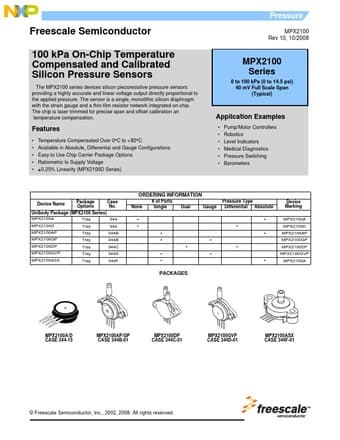

Freescale Semiconductor + 100 kPa On-Chip Temperature Compensated and Calibrated Silicon Pressure Sensors The MPX2100 series devices silicon piezoresistive pressure sensors providing a highly accurate and linear voltage output directly proportional to the applied pressure.

The sensor is a single, monolithic silicon diaphragm with the strain gauge and a thin-film resistor network integrated on-chip.

The chip is laser trimmed for precise span and offset calibration an temperature compensation.

Fea

MPX2100GVP Features

* Temperature Compensated Over 0°C to +85°C

* Available in Absolute, Differential and Gauge Configurations

* Easy to Use Chip Carrier Package Options

* Ratiometric to Supply Voltage

* ±0.25% Linearity (MPX2100D Series) Pressure MPX2100 Rev 10, 10/2008 MPX2100
