MCXN236 - 150-MHz 32-bit MCU

Product Overview

NXP

📥 Download Datasheet

MCXN236 150-MHz 32-bit MCU by NXP - Datasheet Preview — Datasheet preview – MCXN236

Datasheet Details

Part number	MCXN236
Manufacturer	NXP
File Size	1.93 MB
Description	150-MHz 32-bit MCU
Datasheet	MCXN236 Datasheet

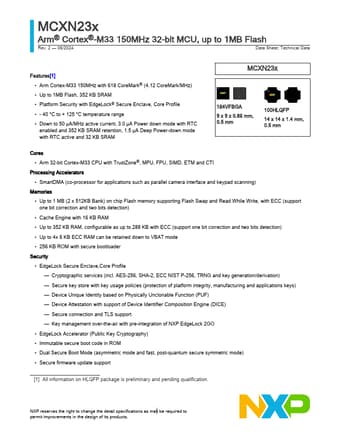

Additional preview pages of the MCXN236 datasheet.

Product details

Features

1].
Arm Cortex-M33 150MHz with 618 CoreMark® (4.12 CoreMark/MHz).
Up to 1MB Flash, 352 KB SRAM.
Platform Security with EdgeLock® Secure Enclave, Core Profile.
- 40 °C to + 125 °C temperature range.
Down to 50 μA/MHz active current, 3.0 μA Power down mode with RTC enabled and 352 KB SRAM retention, 1.5 μA Deep Power-down mode with RTC active and 32 KB SRAM MCXN23x 184VFBGA 9 x 9 x 0.86 mm, 0.5 mm 100HLQFP 14 x 14 x 1.4 mm, 0.5 mm Cores.
Ar.
