MCX18LG0B - Micro Unit CCD

Name: MCX18LG0B
SKU: MCX18LG0B-424937

Sony

📥 Download Datasheet

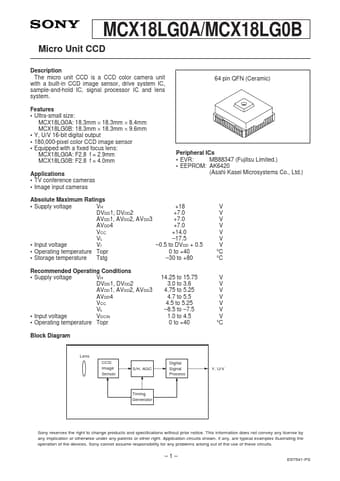

MCX18LG0B Datasheet Preview — Preview of MCX18LG0B PDF

Datasheet Details

Part number	MCX18LG0B
Manufacturer	Sony
File Size	238.55 KB
Description	Micro Unit CCD
Datasheet	MCX18LG0B_SonyCorporation.pdf

MCX18LG0B Product details

Description

The micro unit CCD is a CCD color camera unit with a built-in CCD image sensor, drive system IC, sample-and-hold IC, signal processor IC and lens system.

Features

Ultra-small size: MCX18LG0A: 18.3mm × 18.3mm × 8.4mm MCX18LG0B: 18.3mm × 18.3mm × 9.6mm.
Y, U/V 16-bit digital output.
180,000-pixel color CCD image sensor.
Equipped with a fixed focus lens: MCX18LG0A: F2.8 f = 2.9mm MCX18LG0B: F2.8 f = 4.0mm.
