LPC55S04JBD64, LPC55S06JBD64 - microcontroller

Name: LPC55S04JBD64
SKU: LPC55S04JBD64-1510289

NXP

The LPC55S04JBD64 by NXP is a microcontroller. Below is the official datasheet preview.

Datasheet Details

Part number	LPC55S04JBD64, LPC55S06JBD64
Manufacturer	NXP
File Size	2.51 MB
Description	microcontroller
Datasheet	LPC55S06JBD64-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: LPC55S04JBD64, LPC55S06JBD64. Please refer to the document for exact specifications by model.

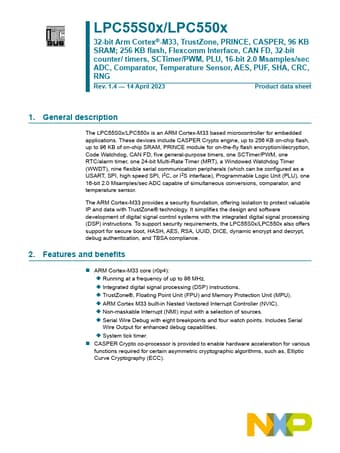

Additional preview pages of the LPC55S04JBD64 datasheet.

The LPC55S0x/LPC550x is an ARM Cortex-M33 based microcontroller for embedded applications.

ARM Cortex-M33 core (r0p4):.
Running at a frequency of up to 96 MHz.
Integrated digital signal processing (DSP) instructions.
TrustZone®, Floating Point Unit (FPU) and Memory Protection Unit (MPU).
ARM Cortex M33 built-in Nested Vectored Interrupt Controller (NVIC).
Non-maskable Interrupt (NMI) input with a selection of sources.
Serial Wire Debug with eight breakpoints and four watch points. Includes Serial Wire Output for enhanced debug capabilities.
