LPC55S16 Datasheet PDF (32-bit coprocessor)

LPC55S16 - 32-bit coprocessor

Description

The LPC55S1x/LPC551x is an Arm Cortex-M33 based microcontroller for embedded applications.

Features

Arm Cortex-M33 core (r0p4):.
Running at a frequency of up to 150 MHz.
Integrated digital signal processing (DSP) instructions.
TrustZone®, Floating Point Unit (FPU) and Memory Protection Unit (MPU).
Arm Cortex M33 built-in Nested Vectored Interrupt Controller (NVIC).
Non-maskable Interrupt (NMI) input with a selection of sources.
Serial Wire Debug with eight breakpoints and four watch points. Includes Serial Wire Output for enhanced debug capabilities.

Datasheet Details

Part number	LPC55S16
Manufacturer	NXP Semiconductors
File Size	3.42 MB
Description	32-bit coprocessor
Datasheet	LPC55S16 Datasheet
Additional preview pages of the LPC55S16 datasheet.

📁 Similar Datasheet

LPC10065 - choke coil inductor (KOA Speer Electronics)

LPC1100 - Cortex-M0 based microcontrollers (NXP Semiconductors)

LPC1102 - 32-bit ARM Cortex-M0 microcontroller (NXP Semiconductors)

LPC12065 - choke coil inductor (KOA Speer Electronics)

LPC1224 - 32-bit ARM Cortex-M0 microcontroller (NXP Semiconductors)

LPC1225 - 32-bit ARM Cortex-M0 microcontroller (NXP Semiconductors)

LPC1226 - 32-bit ARM Cortex-M0 microcontroller (NXP Semiconductors)

LPC1227 - 32-bit ARM Cortex-M0 microcontroller (NXP Semiconductors)

LPC1311 - 32-bit ARM Cortex-M3 microcontroller (NXP Semiconductors)

LPC1313 - 32-bit ARM Cortex-M3 microcontroller (NXP Semiconductors)

Full PDF Text Transcription

Click to expand full text

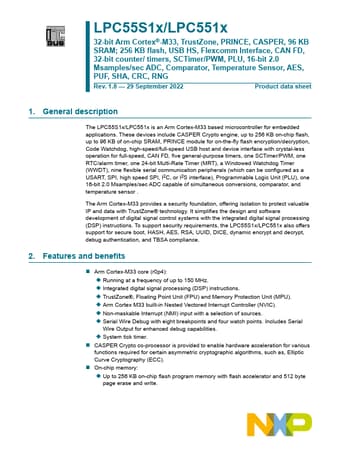

LPC55S1x/LPC551x 32-bit Arm Cortex®-M33, TrustZone, PRINCE, CASPER, 96 KB SRAM; 256 KB flash, USB HS, Flexcomm Interface, CAN FD, 32-bit counter/ timers, SCTimer/PWM, PLU, 16-bit 2.0 Msamples/sec ADC, Comparator, Temperature Sensor, AES, PUF, SHA, CRC, RNG Rev. 1.8 — 29 September 2022 Product data sheet 1. General description The LPC55S1x/LPC551x is an Arm Cortex-M33 based microcontroller for embedded applications.
