LPC1778, LPC177x, (LPC177x / LPC178x) 32-bit ARM Cortex-M3 microcontroller

LPC178x/7x 32-bit ARM Cortex-M3 microcontroller; up to 512 kB flash and 96 kB SRAM; USB Device/Host/OTG; Ethernet; LCD; EMC Rev.4.1 * 15 Nove.
The LPC178x/7x is an ARM Cortex-M3 based microcontroller for embedded applications requiring a high level of integration and low power dissipation.

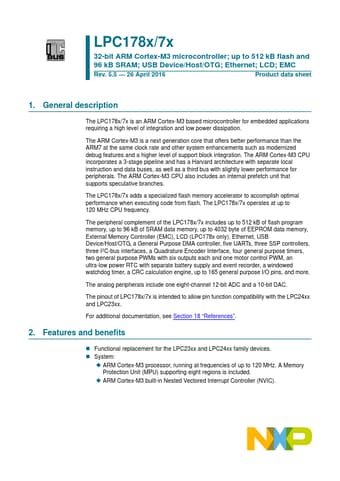

datasheet Preview Page 1 from Datasheet4u.com

LPC177x_NXP.pdf

LPC1778 Datasheet Preview — This datasheet PDF includes multiple part numbers: LPC1778, LPC177x. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LPC1778, LPC177x

Manufacturer:

NXP ↗

File Size:

1.95 MB

Description:

(LPC177x / LPC178x) 32-bit ARM Cortex-M3 microcontroller

Note:

This datasheet PDF includes multiple part numbers: LPC1778, LPC177x.
Please refer to the document for exact specifications by model.

Features

* Functional replacement for the LPC23xx and LPC24xx family devices.
* System:
* ARM Cortex-M3 processor, running at frequencies of up to 120 MHz. A Memory Protection Unit (MPU) supporting eight regions is included.
* ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC)
