LPC1774, LPC177x - (LPC177x / LPC178x) 32-bit ARM Cortex-M3 microcontroller

NXP

Datasheet Details

Part number	LPC1774, LPC177x
Manufacturer	NXP ↗
File Size	1.95 MB
Description	(LPC177x / LPC178x) 32-bit ARM Cortex-M3 microcontroller
Datasheet	LPC177x_NXP.pdf
Note	This datasheet PDF includes multiple part numbers: LPC1774, LPC177x. Please refer to the document for exact specifications by model.

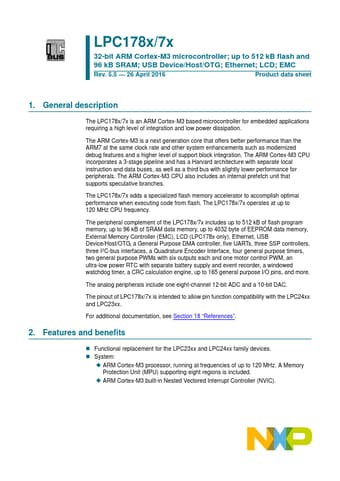

The LPC178x/7x is an ARM Cortex-M3 based microcontroller for embedded applications requiring a high level of integration and low power dissipation.

Functional replacement for the LPC23xx and LPC24xx family devices.
System:.
ARM Cortex-M3 processor, running at frequencies of up to 120 MHz. A Memory Protection Unit (MPU) supporting eight regions is included.
ARM Cortex-M3 built-in Nested Vectored Interrupt Controller (NVIC).
Multilayer AHB matrix interconnect provides a separate bus for each AHB master. AHB masters include the CPU,USB, Ethernet, and the General Purpose DMA controller. This interconnect provides co.
