LD6915LX, LD6915 - Dual low-dropout regulators

NXP

📥 Download Datasheet

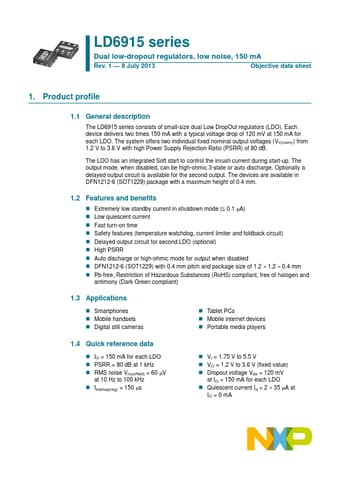

LD6915LX Datasheet Preview — This datasheet PDF includes multiple part numbers: LD6915LX, LD6915. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	LD6915LX, LD6915
Manufacturer	NXP
File Size	446.89 KB
Description	Dual low-dropout regulators
Datasheet	LD6915-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: LD6915LX, LD6915. Please refer to the document for exact specifications by model.

LD6915LX Product details

Description

The LD6915 series consists of small-size dual Low DropOut regulators (LDO).

Features

Extremely low standby current in shutdown mode ( 0.1 A).
Low quiescent current.
Fast turn-on time.
Safety features (temperature watchdog, current limiter and foldback circuit).
Delayed output circuit for second LDO (optional).
High PSRR.
Auto discharge or high-ohmic mode for output when disabled.
DFN1212-6 (SOT1229) with 0.4 mm pitch and package size of 1.2  1.2  0.4 mm.
Pb-free, Restriction of Hazardous Substances (RoHS) compliant, free of halog.
