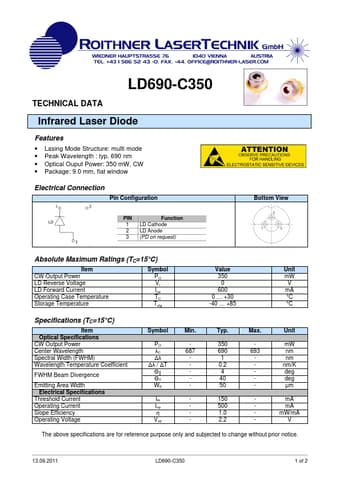

LD690-C350 - Infrared Laser Diode

Roithner Lasertechnik

Datasheet Details

Part number	LD690-C350
Manufacturer	Roithner Lasertechnik
File Size	129.61 KB
Description	Infrared Laser Diode
Datasheet	LD690-C350-RoithnerLasertechnik.pdf

Lasing Mode Structure: multi mode.
Peak Wavelength : typ. 690 nm.
Optical Ouput Power: 350 mW, CW.
Package: 9.0 mm, flat window Electrical Connection Pin Configuration PIN Function 1 LD Cathode 2 LD Anode 3 (PD on request) Bottom View Absolute Maximum Ratings (TC=15°C) Item CW Output Power LD Reverse Voltage LD Forward Current Operating Case Temperature Storage Temperature Symbol PO Vr Iop TC Tstg Value 350 0 600 0 … +30 -40 … +85 Unit mW V mA °C °C Sp.
