ISP1504C, ISP1504A - ULPI Hi Speed USB Transceiver

Datasheet Details

Part number	ISP1504C, ISP1504A
Manufacturer	NXP
File Size	1.06 MB
Description	ULPI Hi Speed USB Transceiver
Datasheet	ISP1504A_PhilipsSemiconductors.pdf
Note	This datasheet PDF includes multiple part numbers: ISP1504C, ISP1504A. Please refer to the document for exact specifications by model.

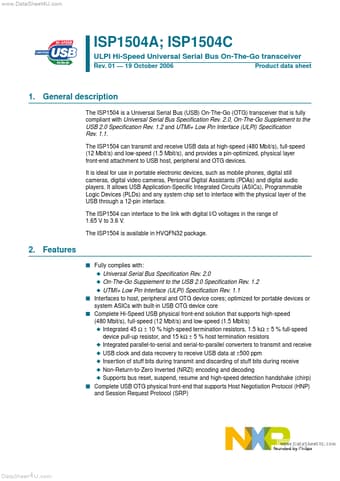

The ISP1504 is a Universal Serial Bus (USB) On-The-Go (OTG) transceiver that is fully compliant with Universal Serial Bus Speciﬁcation Rev.

I Fully complies with: N Universal Serial Bus Speciﬁcation Rev. 2.0 N On-The-Go Supplement to the USB 2.0 Speciﬁcation Rev. 1.2 N UTMI+ Low Pin Interface (ULPI) Speciﬁcation Rev. 1.1 I Interfaces to host, peripheral and OTG device cores; optimized for portable devices or system ASICs with built-in USB OTG device core I Complete Hi-Speed USB physical front-end solution that supports high-speed (480 Mbit/s), full-speed (12 Mbit/s) and low-speed (1.5 Mbit/s) N Integrated 45 Ω ± 10 % high-speed term.
