GTL2000 - 22-bit bi-directional low voltage translator

NXP

The GTL2000 by NXP is a 22-bit bi-directional low voltage translator. Below is the official datasheet preview.

📥 Download Datasheet

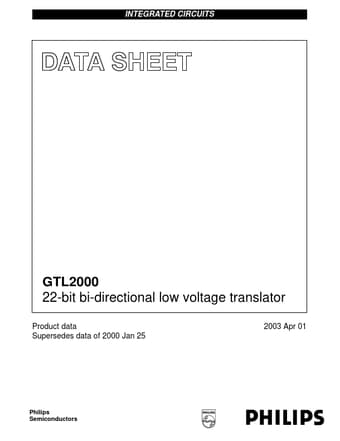

GTL2000 22-bit bi-directional low voltage translator by NXP - Datasheet Preview — Official preview page of the **GTL2000** 22-bit bi-directional low voltage translator datasheet (NXP).

Datasheet Details

Part number	GTL2000
Manufacturer	NXP
File Size	102.92 KB
Description	22-bit bi-directional low voltage translator
Datasheet	GTL2000_PhilipsSemiconductors.pdf
Additional preview pages of the GTL2000 datasheet.

GTL2000 Product details

Description

The Gunning Transceiver Logic Transceiver Voltage Clamps (GTL-TVC) provide high-speed voltage translation with low ON-state resistance and minimal propagation delay.

Features

22-bit bi-directional low voltage translator.
Allows voltage level translation between 1.0 V, 1.2 V, 1.5 V, 1.8 V, 2.5 V, 3.3 V, and 5 V busses which allows direct interface with GTL, GTL+, LVTTL/TTL and 5 V CMOS levels.
Provides bi-directional voltage translation with no direction pin.
Low 6.5 Ω RDSON resistance between input and output pins (Sn/Dn).
Supports hot insertion.
No power supply required - Will not latch up.
5 V tolerant.
