GTL432 - ADJUSTABLE SHUNT REGULATOR

GTM

The GTL432 by GTM is a ADJUSTABLE SHUNT REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

GTL432 ADJUSTABLE SHUNT REGULATOR by GTM - Datasheet Preview — Official preview page of the **GTL432** ADJUSTABLE SHUNT REGULATOR datasheet (GTM).

Datasheet Details

Part number	GTL432
Manufacturer	GTM
File Size	272.33 KB
Description	ADJUSTABLE SHUNT REGULATOR
Datasheet	GTL432_GTM.pdf

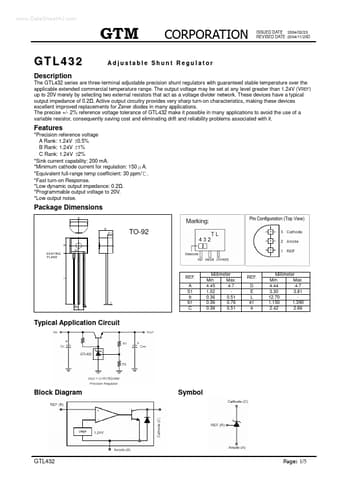

Additional preview pages of the GTL432 datasheet.

GTL432 Product details

Description

Ad ju stabl e Shun t Regu l ator The GTL432 series are three-terminal adjustable precision shunt regulators with guaranteed stable temperature over the applicable extended commercial temperature range.The output voltage may be set at any level greater than 1.24V (VREF) up to 20V merely by selecting two external resistors that act as a voltage divider network.These devices have a typical output impedance of 0.2 .Active output circuitry provides very sharp turn-on characteristics, making thes

Features

Precision reference voltage A Rank: 1.24V 0.5% B Rank: 1.24V 1% C Rank: 1.24V 2%.
Sink current capability: 200 mA.
Minimum cathode current for regulation: 150 A.
Equivalent full-range temp coefficient: 30 ppm/.
Fast turn-on Response.
Low dynamic output impedance: 0.2.
Programmable output voltage to 20V.
Low output noise. Package Dimensions D E S1 TO-92 A b1 S E A T IN G P LA NE REF. A S1 b b1 C e1 e b C Millimeter Min. Max. 4.45 4.7 1.02 0.36 0.
