GPS1502LX, GPS1502L - low-noise amplifier MMIC

NXP

📥 Download Datasheet

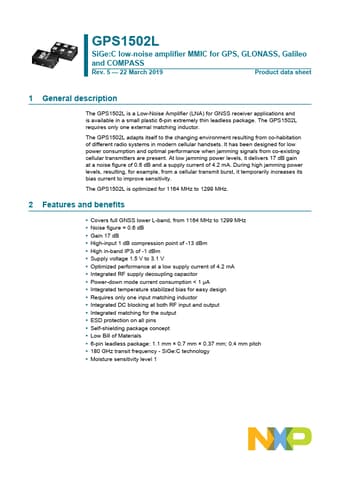

GPS1502LX Datasheet Preview — This datasheet PDF includes multiple part numbers: GPS1502LX, GPS1502L. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GPS1502LX, GPS1502L
Manufacturer	NXP
File Size	182.49 KB
Description	low-noise amplifier MMIC
Datasheet	GPS1502L-NXP.pdf
Note	This datasheet PDF includes multiple part numbers: GPS1502LX, GPS1502L. Please refer to the document for exact specifications by model.

GPS1502LX Product details

Description

The GPS1502L is a Low-Noise Amplifier (LNA) for GNSS receiver applications and is available in a small plastic 6-pin extremely thin leadless package.

Features

Covers full GNSS lower L-band, from 1164 MHz to 1299 MHz.
Noise figure = 0.6 dB.
Gain 17 dB.
High-input 1 dB compression point of -13 dBm.
High in-band IP3i of -1 dBm.
Supply voltage 1.5 V to 3.1 V.
Optimized performance at a low supply current of 4.2 mA.
Integrated RF supply decoupling capacitor.
Power-down mode current consumption < 1 µA.
Integrated temperature stabilized bias for easy design.
R.
