GPS40B120UD - Insulated Gate Bipolar Transistor

International Rectifier

📥 Download Datasheet

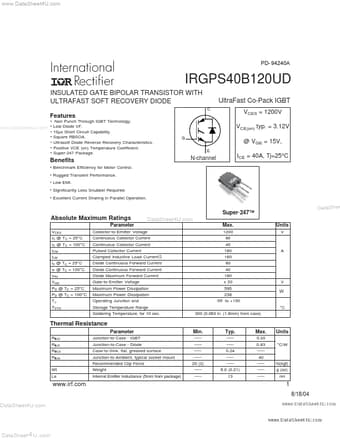

GPS40B120UD Datasheet Preview — Preview of GPS40B120UD PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	GPS40B120UD
Manufacturer	International Rectifier
File Size	359.51 KB
Description	Insulated Gate Bipolar Transistor
Datasheet	GPS40B120UD_InternationalRectifier.pdf

GPS40B120UD Product details

Features

Non Punch Through IGBT Technology. www. DataSheet4U. com.
Low Diode VF.
10µs Short Circuit Capability.
Square RBSOA.
Ultrasoft Diode Reverse Recovery Characteristics.
Positive VCE (on) Temperature Coefficient.
Super-247 Package. G E @ VGE = 15V, N-channel Benefits.
Benchmark Efficiency for Motor Control.
Rugged Transient Performance.
Low EMI.
Significantly Less Snubber Required.
