CGY2105ATS - High dynamic range dual LNA MMIC

Description

The CGY2105 is a dual Gallium Arsenide (GaAs) MMIC amplifier designed for use in very low noise figure applications, where high linearity is also required.

Excellent tracking between the two amplifiers is obtained.

Gain and noise figure variations with temperature are very small.

Features

  • Dual Low Noise Amplifier (LNA) Monolithic Microwave Integrated Circuit (MMIC).
  • Typical noise figure of 0.55 dB.
  • Typical gain of 16.3 dB at 1810 MHz.
  • Input IP3 of 13.5 dBm at 1810 MHz.
  • Low current of 58 mA at 2.5 V for each channel.
  • Low cost SSOP16 plastic package.

📥 Download Datasheet

📁 Similar Datasheet

  • CGY21 - GaAs MMIC (Siemens Semiconductor Group)
  • CGY2128UH-C2 - Low Noise Amplifier (MACOM)
  • CGY2394SUH-C1 - True Time Delay (MACOM)
  • CGY0819 - GaAs MMIC (Siemens Semiconductor Group)
  • CGY0918 - GaAs MMIC (Siemens Semiconductor Group)
  • CGY1032 - 1 GHz - 32 dB gain GaAs push-pull amplifier (NXP Semiconductors)
  • CGY1041 - 1 GHz - 21 dB gain GaAs push-pull amplifier (NXP Semiconductors)
  • CGY1043 - 1 GHz - 23 dB gain GaAs push-pull amplifier (NXP Semiconductors)
  • CGY1047 - 27 dB gain GaAs push-pull amplifier (NXP Semiconductors)
  • CGY120 - GaAs MMIC (Siemens Semiconductor Group)
Other Datasheets by NXP

Full PDF Text Transcription

Click to expand full text

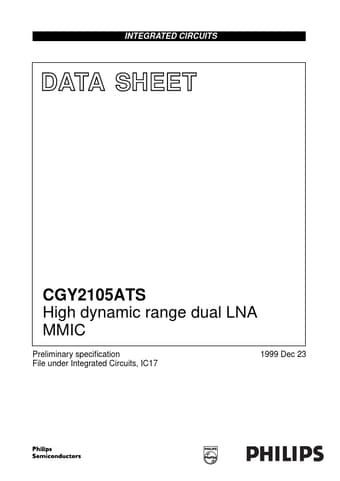

INTEGRATED CIRCUITS DATA SHEET CGY2105ATS High dynamic range dual LNA MMIC Preliminary specification File under Integrated Circuits, IC17 1999 Dec 23 Philips Semiconductors Preliminary specification High dynamic range dual LNA MMIC FEATURES • Dual Low Noise Amplifier (LNA) Monolithic Microwave Integrated Circuit (MMIC) • Typical noise figure of 0.55 dB • Typical gain of 16.3 dB at 1810 MHz • Input IP3 of 13.5 dBm at 1810 MHz • Low current of 58 mA at 2.5 V for each channel • Low cost SSOP16 plastic package. APPLICATIONS • DCS1800 • PCS1900. GENERAL DESCRIPTION CGY2105ATS The CGY2105 is a dual Gallium Arsenide (GaAs) MMIC amplifier designed for use in very low noise figure applications, where high linearity is also required. Excellent tracking between the two amplifiers is obtained.
