CGD1046HI - 27DB Gain GaAs High Output Power Doubler Hybrid amplifier module

NXP

The CGD1046HI by NXP is a 27DB Gain GaAs High Output Power Doubler Hybrid amplifier module. Below is the official datasheet preview.

📥 Download Datasheet

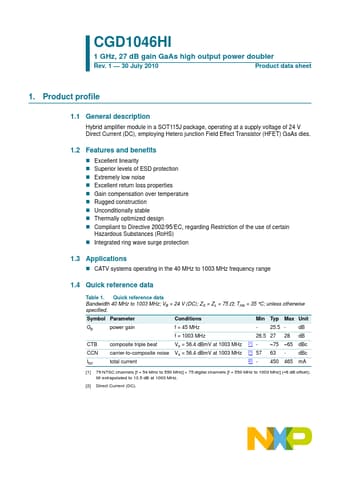

CGD1046HI 27DB Gain GaAs High Output Power Doubler Hybrid amplifier module by NXP - Datasheet Preview — Official preview page of the **CGD1046HI** 27DB Gain GaAs High Output Power Doubler Hybrid amplifier module datasheet (NXP).

Datasheet Details

Part number	CGD1046HI
Manufacturer	NXP
File Size	217.69 KB
Description	27DB Gain GaAs High Output Power Doubler Hybrid amplifier module
Datasheet	CGD1046HI_PhilipsSemiconductors.pdf
Additional preview pages of the CGD1046HI datasheet.

CGD1046HI Product details

Description

Hybrid amplifier module in a SOT115J package, operating at a supply voltage of 24 V Direct Current (DC), employing Hetero junction Field Effect Transistor (HFET) GaAs dies.

Features

Excellent linearity Superior levels of ESD protection Extremely low noise Excellent return loss properties Gain compensation over temperature Rugged construction Unconditionally stable Thermally optimized design Compliant to Directive 2002/95/EC, regarding Restriction of the use of certain Hazardous Substances (RoHS).
Integrated ring wave surge protection 1.3.
