BUK9621-30 - TrenchMOS transistor Logic level FET

BUK9621-30 Description

Philips Semiconductors Product specification TrenchMOS™ transistor Logic level FET GENERAL .
N-channel enhancement mode logic level field-effect power transistor in a plastic envelope suitable for surface mounting using ’trench’ technology.

BUK9621-30 Applications

* BUK9621-30 QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER Drain-source voltage Drain current (DC) Total power dissipation Junction temperature Drain-source on-state resistance VGS = 5 V MAX. 30 50 94 175 21 UNIT V A W ˚C mΩ PINNING - SOT404 (D2PAK) PIN 1 2 3 mb gate drain source dr

📥 Download Datasheet

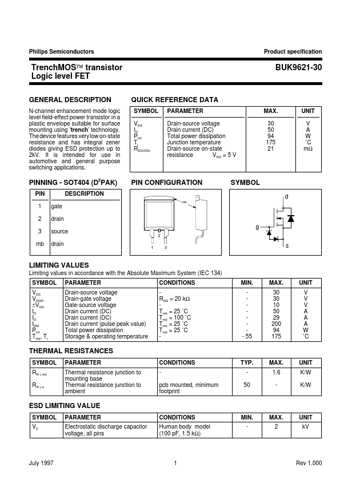

Preview of BUK9621-30 PDF
datasheet Preview Page 2 datasheet Preview Page 3
