BUK9620-55 - TrenchMOS transistor Logic level FET

Description

N-channel enhancement mode logic level field-effect power transistor in a plastic envelope suitable for surface mounting.

Features

  • very low on-state resistance and has integral zener diodes giving ESD protection up to 2kV. It is intended for use in automotive and general purpose switching.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
BUK9620-55A (BUK9520-55A / BUK9620-55A) TrenchMOS logic level FET NXP Semiconductors
BUK9620-55A N-channel MOSFET nexperia
BUK9620-100A (BUK9520-100A / BUK9620-100A) TrenchMOS logic level FET NXP Semiconductors
BUK9620-100B N-channel MOSFET nexperia
BUK9623-75A logic level FET NXP Semiconductors

Other Datasheets by NXP Semiconductors

Part Number Description
BUK9620-55 TrenchMOS transistor Logic level FET
BUK9620-100B N-channel TrenchMOS Logic Level FET
BUK9621-30 TrenchMOS transistor Logic level FET
BUK9624-55 TrenchMOS transistor Logic level FET
BUK9628-55 TrenchMOS transistor Logic level FET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

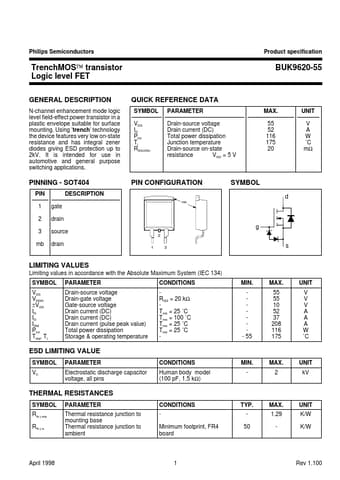

Philips Semiconductors Product specification TrenchMOS™ transistor Logic level FET GENERAL DESCRIPTION N-channel enhancement mode logic level field-effect power transistor in a plastic envelope suitable for surface mounting. Using ’trench’ technology the device features very low on-state resistance and has integral zener diodes giving ESD protection up to 2kV. It is intended for use in automotive and general purpose switching applications. BUK9620-55 QUICK REFERENCE DATA SYMBOL VDS ID Ptot Tj RDS(ON) PARAMETER Drain-source voltage Drain current (DC) Total power dissipation Junction temperature Drain-source on-state resistance VGS = 5 V MAX.
